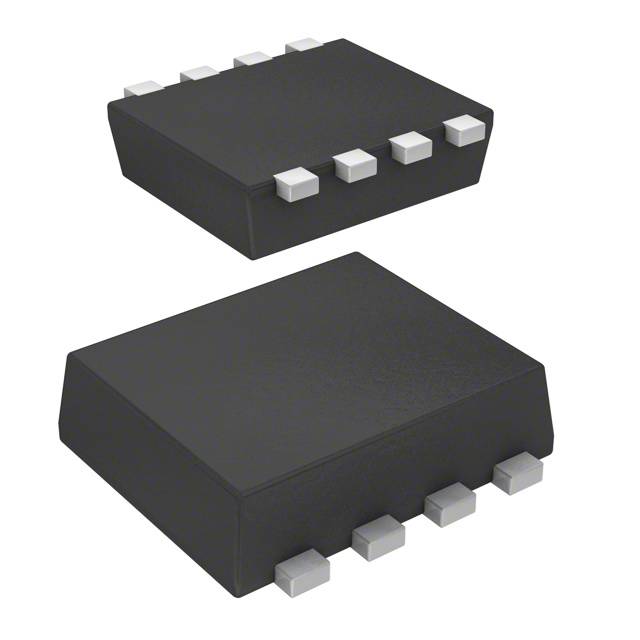

| Part Number | EMH2411R-TL-H | EMH2418R-TL-H | EMH2417R-TL-H |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate, 2.5V Drive | Logic Level Gate, 2.5V Drive | Logic Level Gate, 2.5V Drive |
| Drain to Source Voltage (Vdss) | 30V | 24V | 12V |
| Current - Continuous Drain (Id) @ 25°C | 5A | 9A | 11A |
| Rds On (Max) @ Id, Vgs | 36.5mOhm @ 2.5A, 4.5V | 15mOhm @ 4A, 4.5V | 10mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | - | 1.3V @ 1mA | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 5.9nC @ 4.5V | 4.4nC @ 4.5V | 16nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | - | - | - |
| Power - Max | 1.4W | 1.3W | 1.3W |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
| Supplier Device Package | 8-EMH | SOT-383FL, EMH8 | SOT-383FL, EMH8 |
