| Part Number | EMH2308-TL-E | EMH2308-TL-H |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate, 1.8V Drive |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 3A | 3A |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 3A, 4.5V | 85mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 4nC @ 4.5V | 4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 10V | 320pF @ 10V |
| Power - Max | 1.2W | 1W |
| Operating Temperature | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

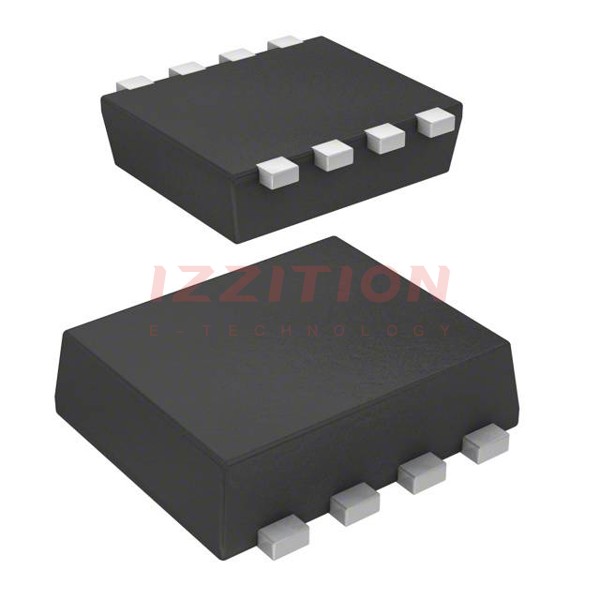

| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
| Supplier Device Package | 8-EMH | 8-EMH |
