onsemi-EMH1303-TL-E - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	23mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 4.5 V
Vgs (Max):	-
Input Capacitance (Ciss) (Max) @ Vds:	1100 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Supplier Device Package:	8-EMH
Package / Case:	8-SMD, Flat Lead

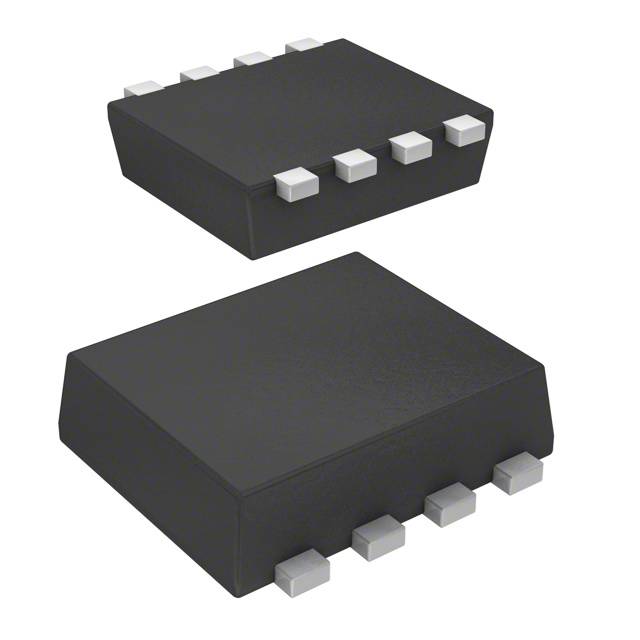

onsemi EMH1303-TL-E
