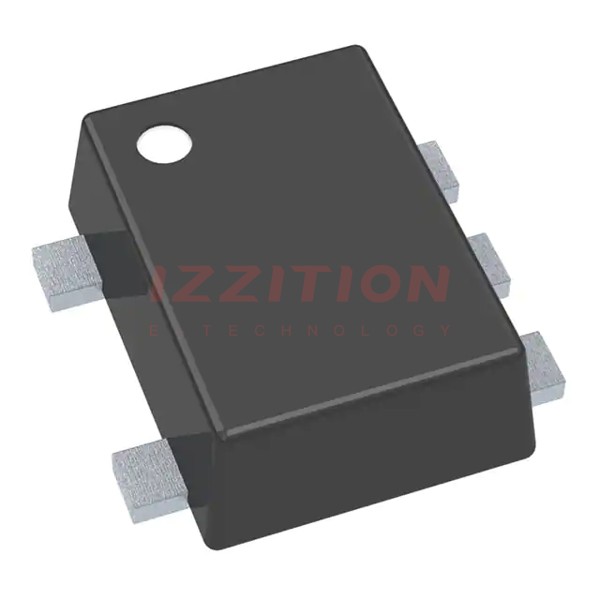

| Part Number | EMC4DXV5T1G | EMC5DXV5T1G | EMC2DXV5T1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V |
| Resistor - Base (R1) | 47kOhms, 10kOhms | 47kOhms, 4.7kOhms | 22kOhms |
| Resistor - Emitter Base (R2) | 47kOhms | 47kOhms, 10kOhms | 22kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V | 80 @ 5mA, 10V / 20 @ 5mA, 10V | 60 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - |
| Power - Max | 500mW | 500mW | 500mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-553 | SOT-553 | SOT-553 |
| Supplier Device Package | SOT-553 | SOT-553 | SOT-553 |
