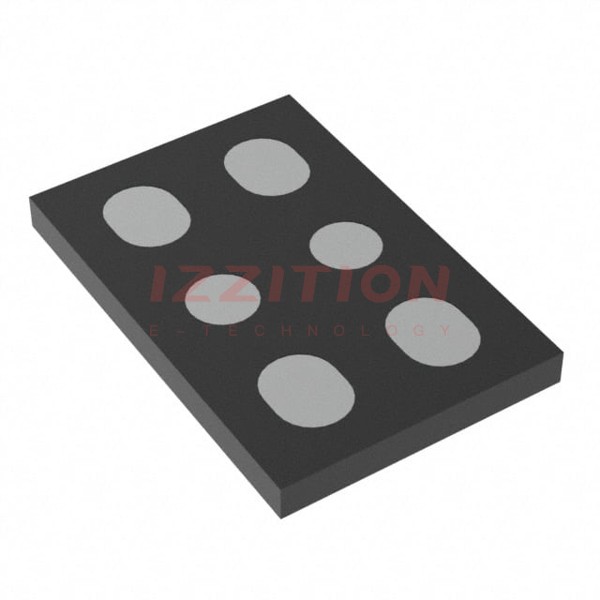

| Part Number | EFC2K101NUZTDG | EFC2K103NUZTDG | EFC2K102NUZTDG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate, 2.5V Drive | Logic Level Gate, 2.5V Drive | Logic Level Gate, 2.5V Drive |
| Drain to Source Voltage (Vdss) | 12V | 12V | 12V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta) | 40A (Ta) | 33A (Ta) |
| Rds On (Max) @ Id, Vgs | 6.2mOhm @ 5A, 4.5V | 1.8mOhm @ 5A, 4.5V | 2.65mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | 1.3V @ 1mA | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 16nC @ 3.8V | 62nC @ 6V | 42nC @ 3.8V |
| Input Capacitance (Ciss) (Max) @ Vds | - | - | - |
| Power - Max | 1.4W (Ta) | 3.3W (Ta) | 3.1W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 10-SMD, No Lead | 10-SMD, No Lead |
| Supplier Device Package | 6-WLCSP (1.79x1.18) | 10-WLCSP (3.54x1.77) | 10-WLCSP (2.98x1.49) |
