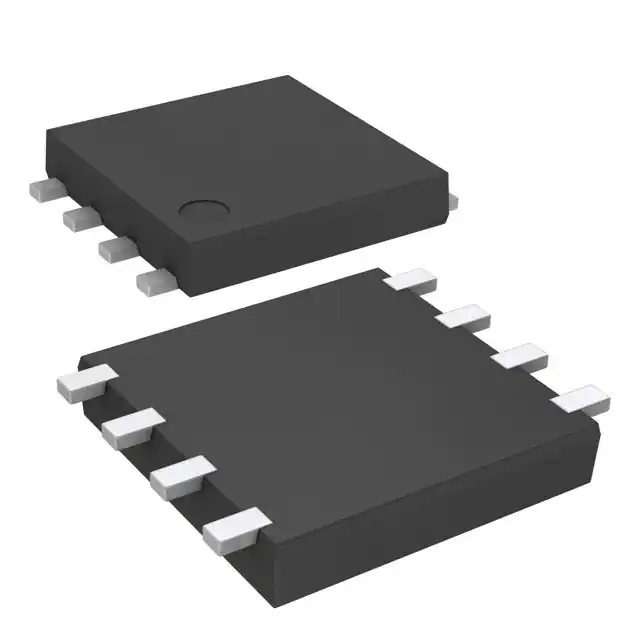

| Part Number | ECH8652-TL-H | ECH8657-TL-H | ECH8654-TL-H | ECH8653-TL-H | ECH8659-TL-H | ECH8662-TL-H | ECH8672-TL-H |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 N-Channel (Dual) | 2 P-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 12V | 35V | 20V | 20V | 30V | 40V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6A | 4.5A | 5A | 7.5A | 7A | 6.5A | 3.5A |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 3A, 4.5V | 59mOhm @ 2A, 10V | 38mOhm @ 3A, 4.5V | 20mOhm @ 4A, 8V | 24mOhm @ 3.5A, 10V | 30mOhm @ 3.5A, 4.5V | 85mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | - | - | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 4.5V | 4.5nC @ 10V | 11nC @ 4.5V | 18.5nC @ 8V | 11.8nC @ 10V | 12nC @ 4.5V | 4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000pF @ 6V | 230pF @ 20V | 960pF @ 10V | 1280pF @ 10V | 710pF @ 10V | 1130pF @ 20V | 320pF @ 10V |
| Power - Max | 1.5W | 1.5W | 1.5W | 1.5W | 1.5W | 1.5W | 1.5W |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
| Supplier Device Package | 8-ECH | 8-ECH | 8-ECH | 8-ECH | 8-ECH | 8-ECH | 8-ECH |
