onsemi-ECH8601M-TL-H-P - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss):	24V
Current - Continuous Drain (Id) @ 25°C:	8A (Ta)
Rds On (Max) @ Id, Vgs:	23mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	7.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	-
Power - Max:	-
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Flat Lead
Supplier Device Package:	8-ECH

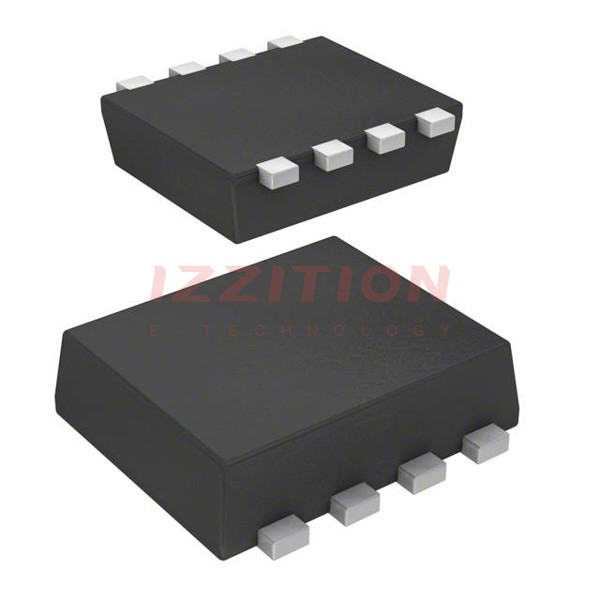

onsemi ECH8601M-TL-H-P
