| Part Number | ECH8601M-TL-H | ECH8602M-TL-H |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) Common Drain | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 2.5V Drive | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 24V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) | 6A |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 4A, 4.5V | 30mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 7.5nC @ 4.5V | 7.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | - | - |
| Power - Max | - | 1.5W |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

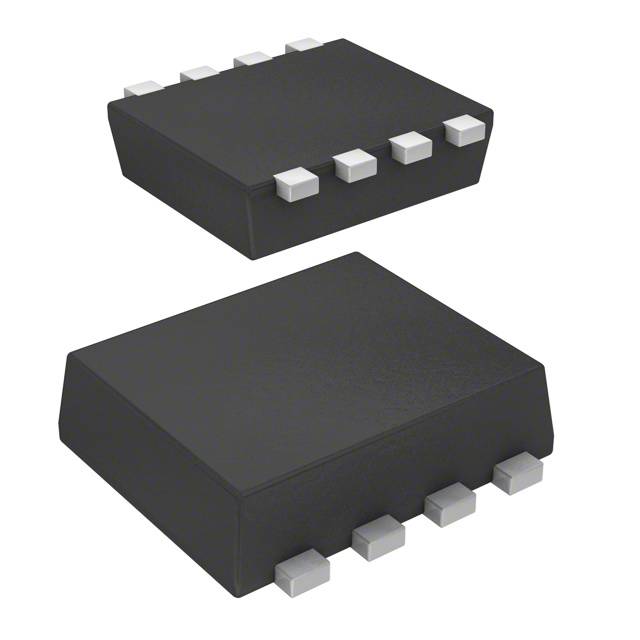

| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
| Supplier Device Package | 8-ECH | 8-ECH |
