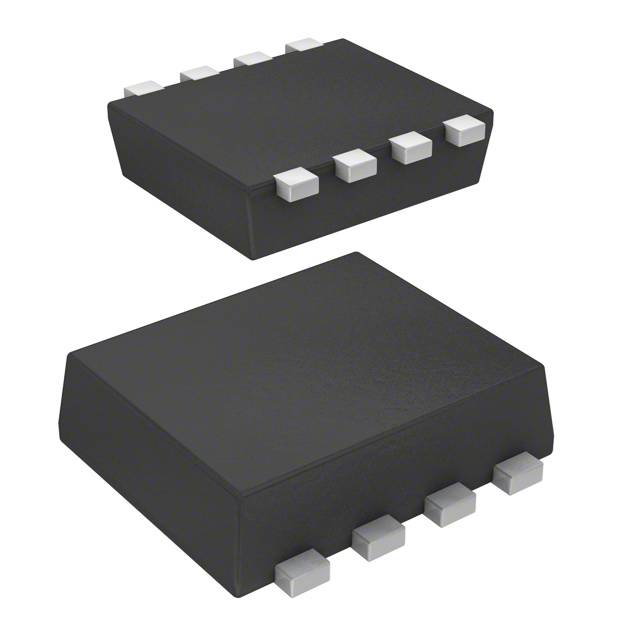

| Part Number | ECH8420-TL-H | ECH8320-TL-H | ECH8410-TL-H |
|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Sanyo |
| Product Status | Active | Obsolete | Obsolete |
| FET Type | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) | 9.5A (Ta) | 12A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | - | - |
| Rds On (Max) @ Id, Vgs | 6.8mOhm @ 7A, 4.5V | 14.5mOhm @ 5A, 4.5V | 10mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | - | 1.3V @ 1mA | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 4.5 V | 25 nC @ 4.5 V | 31 nC @ 10 V |
| Vgs (Max) | ±12V | ±10V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2430 pF @ 10 V | 2300 pF @ 10 V | 1700 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.6W (Ta) | 1.6W (Ta) | 1.6W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C | 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-ECH | SOT-28FL/ECH8 | SOT-28FL/ECH8 |
| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
