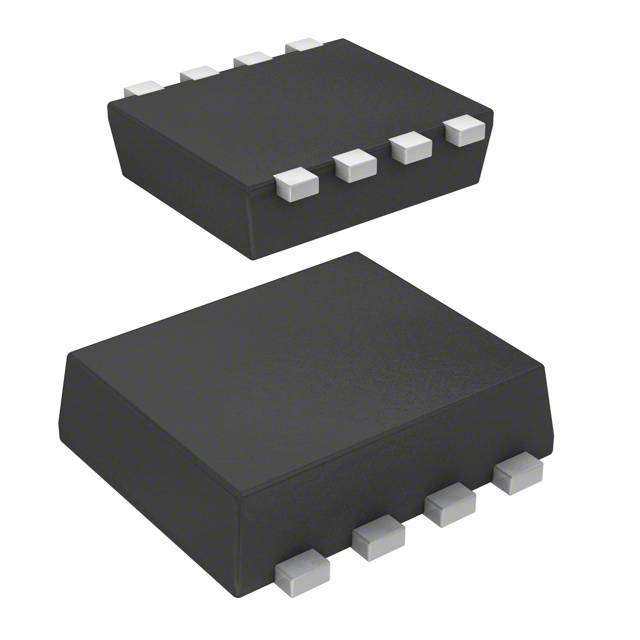

| Part Number | ECH8419-TL-H | ECH8410-TL-H |
|---|---|---|
| Manufacturer | onsemi | Sanyo |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 35 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) | 12A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | - |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 5A, 10V | 10mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V | 31 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 960 pF @ 20 V | 1700 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.5W (Ta) | 1.6W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-ECH | SOT-28FL/ECH8 |
| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
