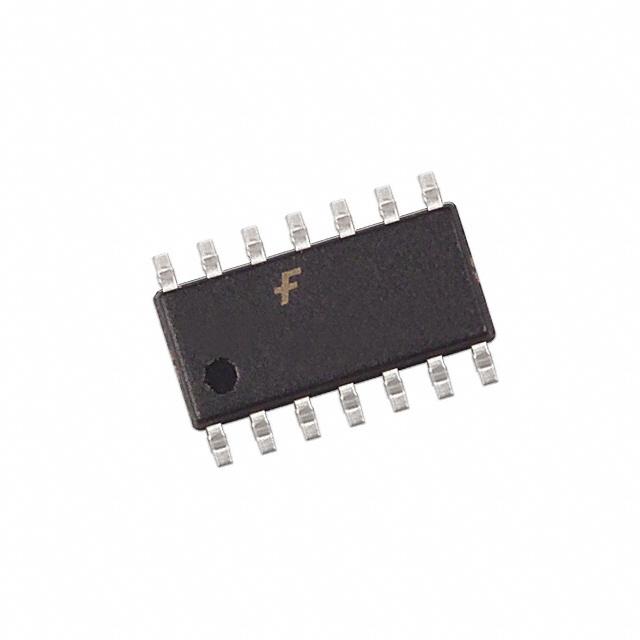

| Part Number | DM74AS32SJX | DM74LS32SJX | DM74ALS32SJX | DM74AS32SJ |
|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Logic Type | OR Gate | OR Gate | OR Gate | OR Gate |
| Number of Circuits | 4 | 4 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 | 2 |
| Features | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.75V ~ 5.25V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | 9.8 mA | - | - |
| Current - Output High, Low | 2mA, 20mA | 400µA, 8mA | 400µA, 8mA | 2mA, 20mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 5.8ns @ 5V, 50pF | 15ns @ 5V, 50pF | 14ns @ 5V, 50pF | 5.8ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOP | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) |
