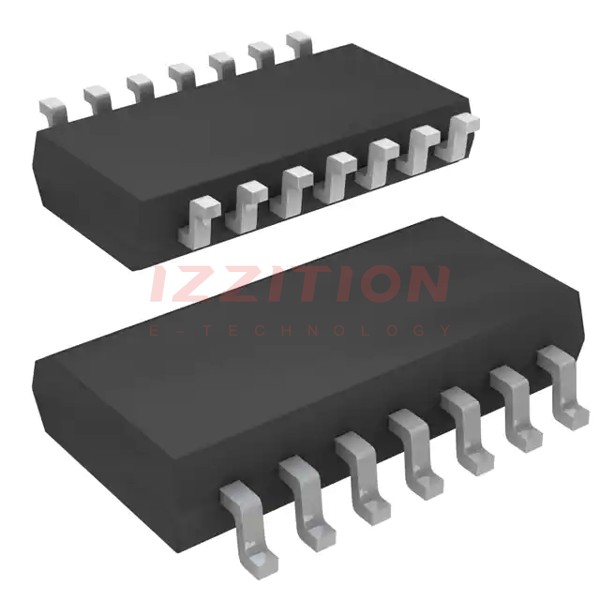

| Part Number | DM74ALS10ASJX | DM74ALS30ASJX | DM74ALS00ASJX | DM74ALS10ASJ |
|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | Fairchild Semiconductor | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NAND Gate | NAND Gate | NAND Gate | NAND Gate |
| Number of Circuits | 3 | 1 | 4 | 3 |
| Number of Inputs | 3 | 8 | 2 | 3 |
| Features | - | - | - | - |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - | - | - | - |
| Current - Output High, Low | 400µA, 8mA | 400µA, 8mA | 400µA, 8mA | 400µA, 8mA |
| Logic Level - Low | 0.8V | 0.8V | 0.8V | 0.8V |
| Logic Level - High | 2V | 2V | 2V | 2V |
| Max Propagation Delay @ V, Max CL | 11ns @ 5V, 50pF | 12ns @ 5V, 50pF | 11ns @ 5V, 50pF | 11ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP | 14-SOP | 14-SOP |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) |
