onsemi-DF06S - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	DF06S	DF06S1	DF08S	DF06S2	DF01S	DF02S	DF04S	DF06M
Manufacturer	onsemi	onsemi	Diodes Incorporated	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Obsolete	Active	Active	Active	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	600 V	800 V	600 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	1.5 A	1 A	1 A	2 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1.5 A	1.1 V @ 1 A	1.1 V @ 1 A	1.1 V @ 1 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1 A
Current - Reverse Leakage @ Vr	5 µA @ 600 V	5 µA @ 600 V	10 µA @ 800 V	5 µA @ 600 V	5 µA @ 100 V	10 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Through Hole
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-SDIP	4-SDIP	DF-S	4-SDIP	4-SDIP	4-SDIP	4-SDIP	4-DIP

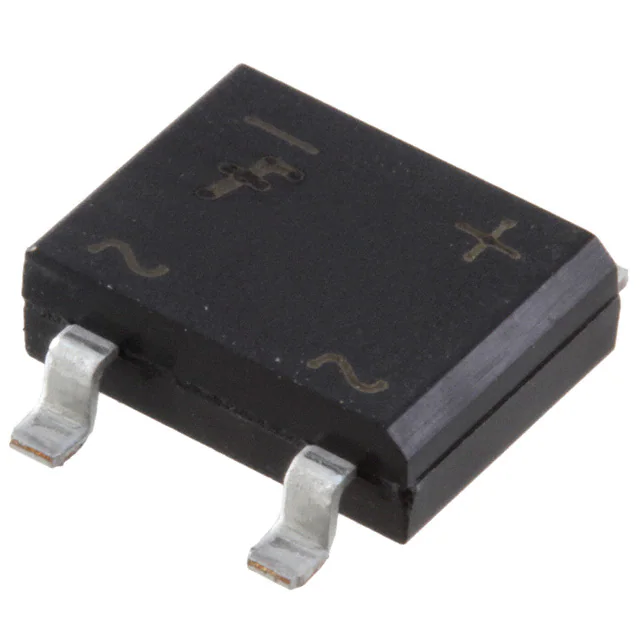

onsemi DF06S

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 600 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SDIP
