onsemi-DF06M - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	DF06M	DF08M	DF06S	DF01M	DF02M	DF04M
Manufacturer	onsemi	Diodes Incorporated	onsemi	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	800 V	600 V	100 V	200 V	400 V
Current - Average Rectified (Io)	1.5 A	1 A	1.5 A	1 A	1 A	1 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1 A	1.1 V @ 1 A	1.1 V @ 1.5 A	1.1 V @ 1 A	1.1 V @ 1 A	1.1 V @ 1 A
Current - Reverse Leakage @ Vr	5 µA @ 600 V	10 µA @ 800 V	5 µA @ 600 V	10 µA @ 100 V	10 µA @ 200 V	10 µA @ 400 V
Operating Temperature	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Surface Mount	Through Hole	Through Hole	Through Hole
Package / Case	4-EDIP (0.300", 7.62mm)	4-EDIP (0.300", 7.62mm)	4-SMD, Gull Wing	4-EDIP (0.300", 7.62mm)	4-EDIP (0.300", 7.62mm)	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-DIP	DFM	4-SDIP	DFM	DFM	DFM

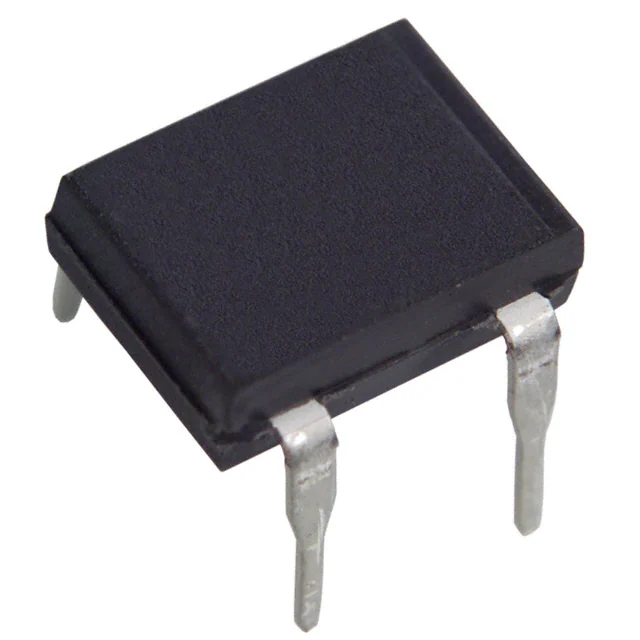

onsemi DF06M

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1 A
Current - Reverse Leakage @ Vr:	5 µA @ 600 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-EDIP (0.300", 7.62mm)
Supplier Device Package:	4-DIP
