onsemi-DF02S2 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	DF02S2	DF06S2	DF04S2	DF01S2	DF02S	DF02S1
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	200 V	600 V	400 V	100 V	200 V	200 V
Current - Average Rectified (Io)	2 A	2 A	2 A	2 A	1.5 A	1 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1 A	1.1 V @ 1 A	1.1 V @ 2 A	1.1 V @ 2 A	1.1 V @ 1.5 A	1.1 V @ 1 A
Current - Reverse Leakage @ Vr	3 µA @ 200 V	5 µA @ 600 V	3 µA @ 400 V	3 µA @ 100 V	10 µA @ 200 V	3 µA @ 200 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing	4-SMD, Gull Wing
Supplier Device Package	4-SDIP	4-SDIP	4-SDIP	4-SDIP	4-SDIP	4-SDIP

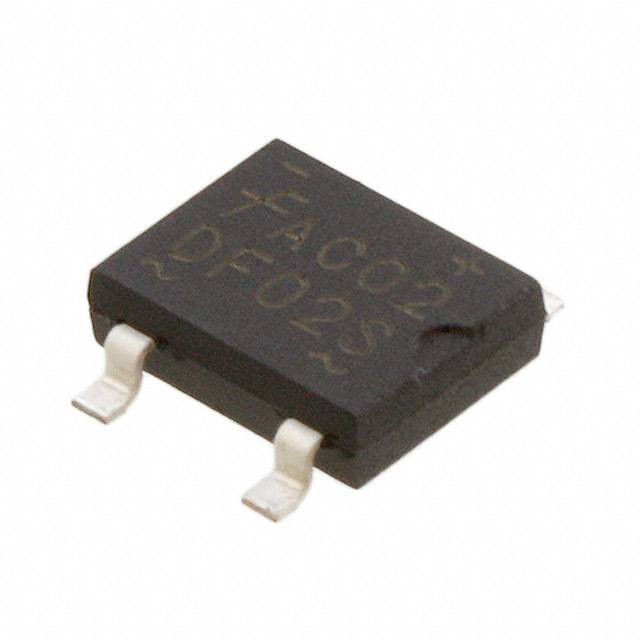

onsemi DF02S2

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	200 V
Current - Average Rectified (Io):	2 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1 A
Current - Reverse Leakage @ Vr:	3 µA @ 200 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SDIP
