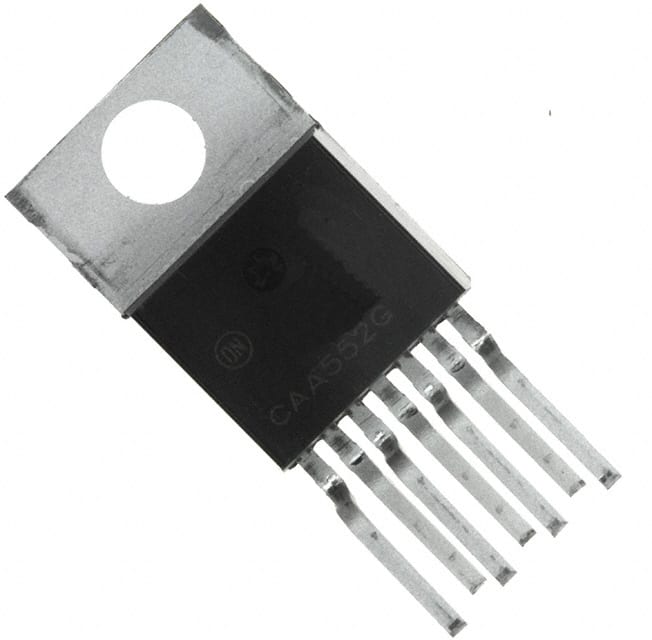

| Part Number | CS8371ETVA7 | CS8371ETVA7G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 45V | 45V |
| Voltage - Output (Min/Fixed) | 8V, 5V | 8V, 5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 1.5V @ 1A, 2.5V @ 250mA | 1.5V @ 1A, 2.5V @ 250mA |
| Current - Output | 1A, 250mA | 1A, 250mA |
| Current - Quiescent (Iq) | 7 mA | 7 mA |
| Current - Supply (Max) | 30 mA | 30 mA |
| PSRR | 90dB ~ 67dB (120Hz ~ 20kHz) | 90dB ~ 67dB (120Hz ~ 20kHz) |
| Control Features | Enable | Enable |
| Protection Features | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-7 Formed Leads | TO-220-7 Formed Leads |
| Supplier Device Package | TO-220-7 | TO-220-7 |
