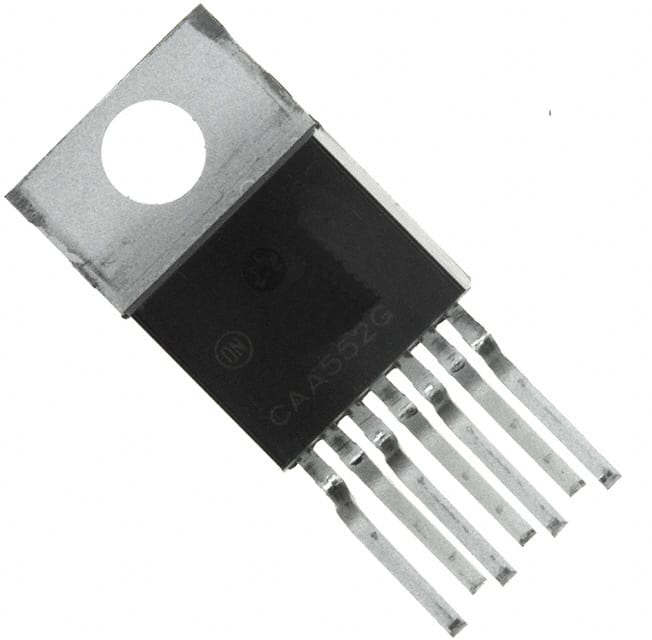

| Part Number | CS8151YTVA7 | CS8151YTVA7G | CS8141YTVA7 | CS8151YTHA7 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 26V | 26V | 26V | 26V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 100mA | 0.6V @ 100mA | 1.5V @ 500mA | 0.6V @ 100mA |
| Current - Output | 100mA | 100mA | 500mA | 100mA |
| Current - Quiescent (Iq) | - | - | - | - |
| Current - Supply (Max) | - | - | - | - |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | Reset, Wake-Up, Watchdog | Reset, Wake-Up, Watchdog | Enable, Reset | Reset, Wake-Up, Watchdog |
| Protection Features | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-7 Formed Leads | TO-220-7 Formed Leads | TO-220-7 Formed Leads | TO-220-7 Formed Leads |
| Supplier Device Package | TO-220-7 | TO-220-7 | TO-220-7 | TO-220-7 |
