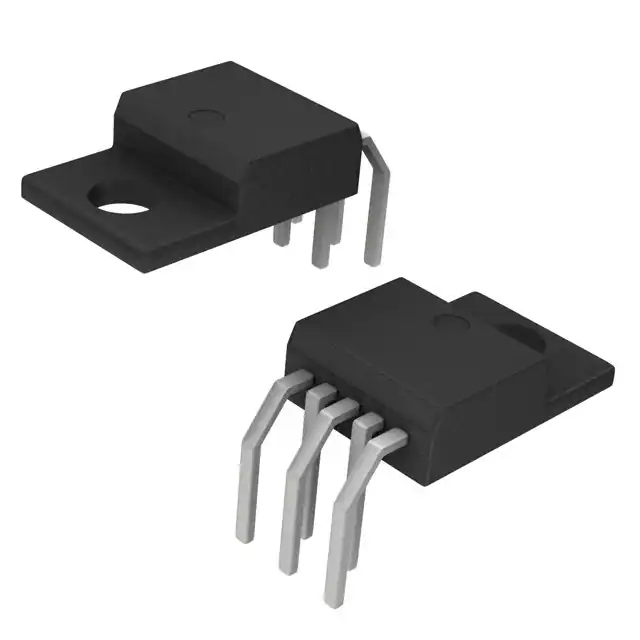

| Part Number | CS8147YTHA5 | CS8147YTVA5 |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 26V | 26V |
| Voltage - Output (Min/Fixed) | 10V, 5V | 10V, 5V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 0.7V @ 500mA, 2.5V @ 70mA | 0.7V @ 500mA, 2.5V @ 70mA |
| Current - Output | 500mA, 70mA | 500mA, 70mA |
| Current - Quiescent (Iq) | 7 mA | 7 mA |
| Current - Supply (Max) | 120 mA | 120 mA |
| PSRR | - | - |
| Control Features | Enable | Enable |
| Protection Features | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Horizontal | TO-220-5 Vertical |
