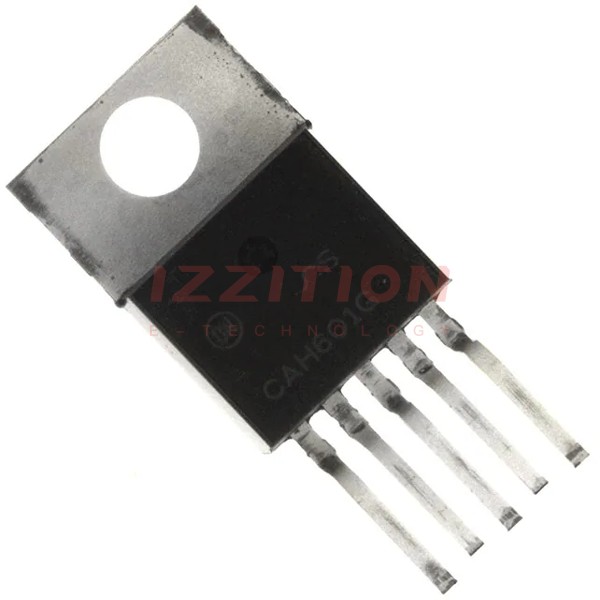

| Part Number | CS8126-1YTHER5 | CS8126-1YTHER5G | CS8126-1YTHE5 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 26V | 26V | 26V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 500mA | 0.6V @ 500mA | 0.6V @ 500mA |
| Current - Output | 750mA | 750mA | 750mA |
| Current - Quiescent (Iq) | 70 mA | 70 mA | 70 mA |
| Current - Supply (Max) | 100 mA | 100 mA | 100 mA |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | Reset | Reset | Reset |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 |
