Please send RFQ , we will respond immediately.

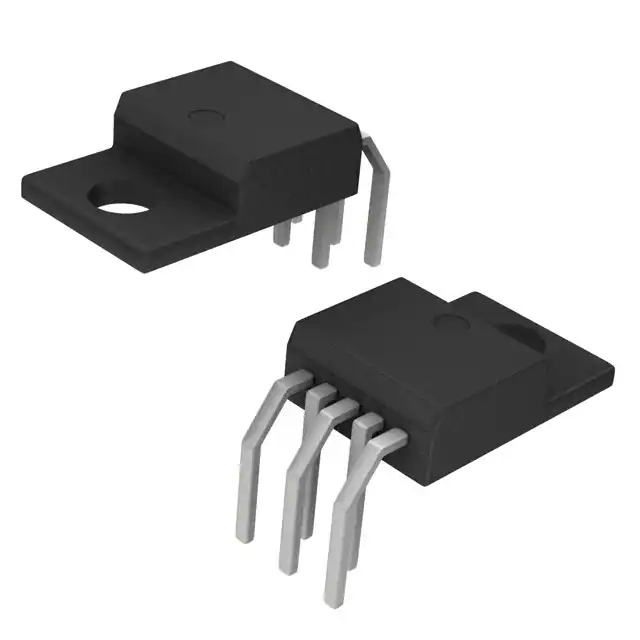

| Part Number | CS8120YTHA5 | CS8120YTVA5 | CS8122YTHA5 | CS8129YTHA5 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 26V | 26V | 26V | 26V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 1.5V @ 200mA | 1.5V @ 200mA | 0.6V @ 500mA | 0.6V @ 500mA |
| Current - Output | 300mA | 300mA | 750mA | 750mA |
| Current - Quiescent (Iq) | 650 µA | 650 µA | 70 mA | 70 mA |
| Current - Supply (Max) | 15 mA | 15 mA | 100 mA | 100 mA |
| PSRR | 70dB (120Hz) | 70dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | Enable, Reset | Enable, Reset | Reset | Reset |
| Protection Features | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 Horizontal | TO-220-5 Vertical | TO-220-5 Horizontal | TO-220-5 Horizontal |
