| Part Number | CS5204-1GT3 | CS5204-5GT3 | CS5205-1GT3 | CS5204-3GT3 | CS5204-2GT3 | CS5206-1GT3 | CS5207-1GT3 | CS5208-1GT3 | CS5201-1GT3 | CS5203-1GT3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Fixed | Adjustable | Fixed | Fixed | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 17V | 17V | 17V | 17V | 17V | 17V | 17V | 6V | 7V | 7V |
| Voltage - Output (Min/Fixed) | 1.25V | 5V | 1.25V | 3.3V | 1.5V | 1.25V | 1.25V | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 13V | - | 13V | - | - | 13V | 13V | 4.5V | 5.5V | 5.5V |
| Voltage Dropout (Max) | 1.2V @ 4A | 1.2V @ 4A | 1.3V @ 5A | 1.2V @ 4A | 1.2V @ 4A | 1.4V @ 6A | 1.55V @ 7A | 1.3V @ 8A | 1V @ 1A | 1.4V @ 3A |
| Current - Output | 4A | 4A | 5A | 4A | 4A | 6A | 7A | 8A | 1A | 3A |
| Current - Quiescent (Iq) | 6 mA | 10 mA | 6 mA | 10 mA | 10 mA | - | 6 mA | 10 mA | - | 2 mA |
| Current - Supply (Max) | - | - | - | - | - | - | - | - | - | - |
| PSRR | 82dB (120Hz) | 75dB (120Hz) | 82dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 82dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) |
| Control Features | - | - | - | - | - | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

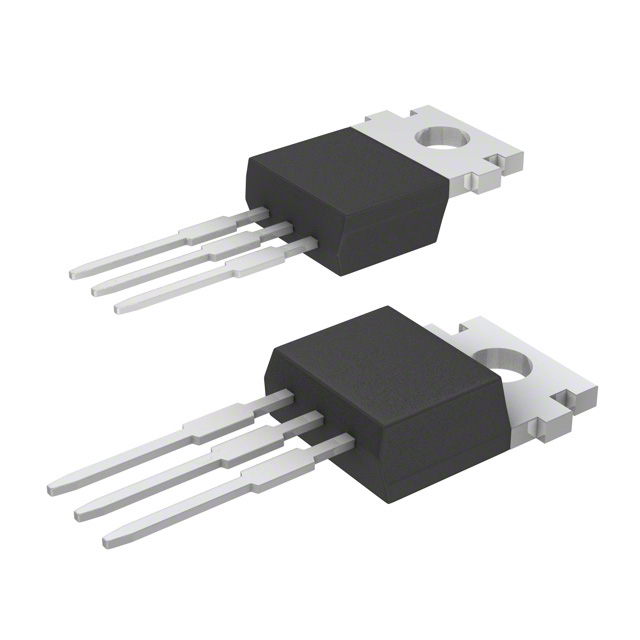

| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
