| Part Number | CS5201-1GDPR3 | CS5201-3GDPR3 | CS52015-1GDPR3 | CS5203-1GDPR3 | CS5204-1GDPR3 | CS5205-1GDPR3 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Fixed | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 7V | 7V | 7V | 7V | 17V | 17V |
| Voltage - Output (Min/Fixed) | 1.25V | 3.3V | 1.25V | 1.25V | 1.25V | 1.25V |
| Voltage - Output (Max) | 5.5V | - | 5.5V | 5.5V | 13V | 13V |
| Voltage Dropout (Max) | 1V @ 1A | 1.2V @ 1A | 1.4V @ 1.5A | 1.4V @ 3A | 1.2V @ 4A | 1.3V @ 5A |
| Current - Output | 1A | 1A | 1.5A | 3A | 4A | 5A |
| Current - Quiescent (Iq) | - | 10 mA | 2 mA | 2 mA | 6 mA | 6 mA |
| Current - Supply (Max) | - | - | - | - | - | - |
| PSRR | 80dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) | 80dB (120Hz) | 82dB (120Hz) | 82dB (120Hz) |
| Control Features | - | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

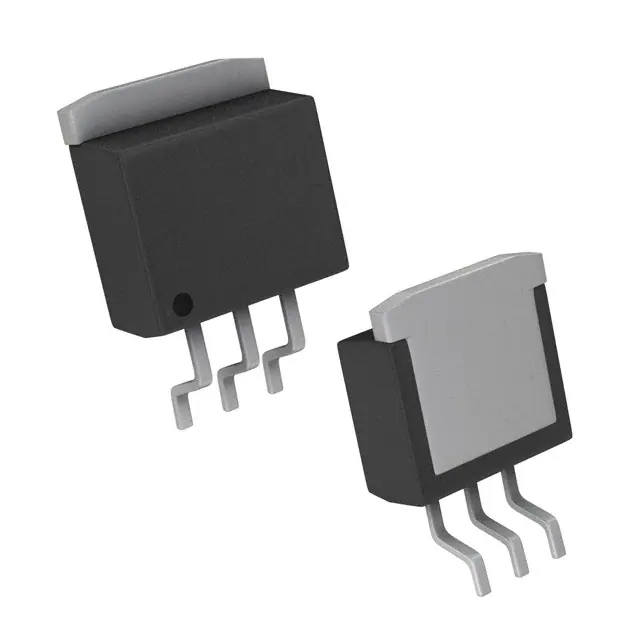

| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | D2PAK-3 | D2PAK-3 | D2PAK-3 | D2PAK-3 | D2PAK-3 | D2PAK-3 |
