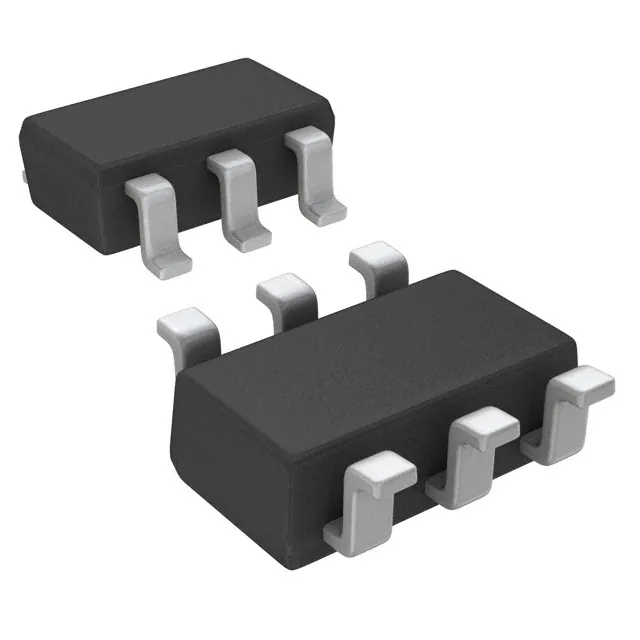

| Part Number | CPH6442-TL-E | CPH6444-TL-E | CPH6445-TL-E | CPH6442-TL-W |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) | 4.5A (Ta) | 3.5A (Ta) | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V | - | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 43mOhm @ 3A, 10V | 78mOhm @ 2A, 10V | 117mOhm @ 1.5A, 10V | 43mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | - | - | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V | 10 nC @ 10 V | 6.8 nC @ 10 V | 20 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1040 pF @ 20 V | 505 pF @ 20 V | 310 pF @ 20 V | 1040 pF @ 20 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.6W (Ta) | 1.6W (Ta) | - | 1.6W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-CPH | 6-CPH | 6-CPH | 6-CPH |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 Thin, TSOT-23-6 |
