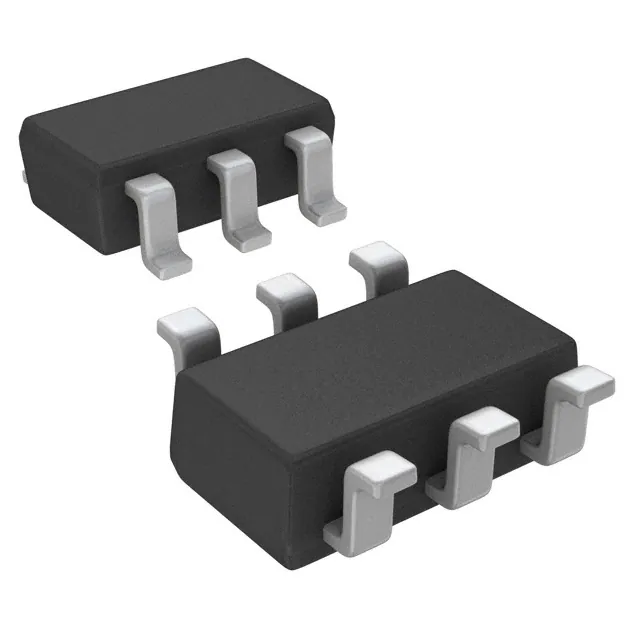

| Part Number | CPH6350-TL-W | CPH6355-TL-W | CPH6354-TL-W | CPH3350-TL-W | CPH6350-TL-E |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | Sanyo |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 60 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) | 3A (Ta) | 4A (Ta) | 3A (Ta) | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V | 4V, 10V | 1.8V, 4.5V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 43mOhm @ 3A, 10V | 169mOhm @ 1.5A, 10V | 100mOhm @ 2A, 10V | 83mOhm @ 1.5A, 4.5V | 43mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | - | 2.6V @ 1mA | 2.6V @ 1mA | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 3.9 nC @ 10 V | 14 nC @ 10 V | 4.6 nC @ 4.5 V | 13 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±10V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 10 V | 172 pF @ 10 V | 600 pF @ 20 V | 375 pF @ 10 V | 600 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 1.6W (Ta) | 1.6W (Ta) | 1.6W (Ta) | 1W (Ta) | 1.6W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-CPH | 6-CPH | 6-CPH | 3-CPH | 6-CPH |
| Package / Case | SOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 | TO-236-3, SC-59, SOT-23-3 | SOT-23-6 |
