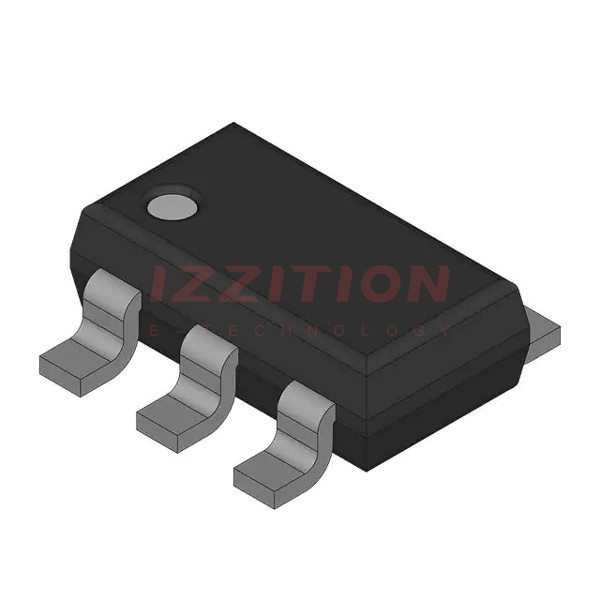

| Part Number | CPH6315-TL-E | CPH6318-TL-E | CPH6311-TL-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| FET Type | - | P-Channel | P-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 12 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | - | 6A (Ta) | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - |
| Rds On (Max) @ Id, Vgs | - | 34mOhm @ 3A, 4.5V | 42mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | - | 1V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 22 nC @ 4.5 V | 31 nC @ 10 V |
| Vgs (Max) | - | ±8V | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1900 pF @ 6 V | 1230 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 1.6W (Ta) | 1.6W (Ta) |
| Operating Temperature | - | 150°C | 150°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount |
| Supplier Device Package | - | 6-CPH | 6-CPH |
| Package / Case | - | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 |
