Please send RFQ , we will respond immediately.

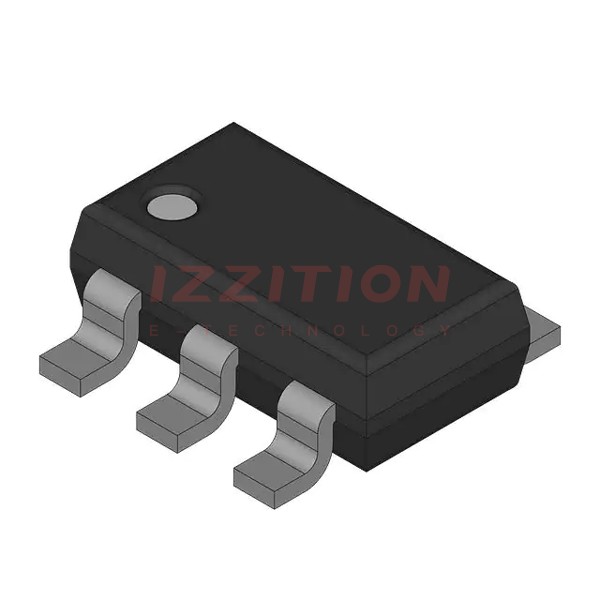

| Part Number | CPH6311-TL-E | CPH6318-TL-E | CPH6315-TL-E | CPH6411-TL-E | CPH6341-TL-E |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Sanyo | onsemi |
| Product Status | Obsolete | Active | Active | Active | Discontinued at Digi-Key |
| FET Type | P-Channel | P-Channel | - | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 12 V | - | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) | 6A (Ta) | - | 6A (Ta) | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - | - | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 3A, 4.5V | 34mOhm @ 3A, 4.5V | - | 20mOhm @ 3A, 4.5V | 59mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | - | 1V @ 1mA | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V | 22 nC @ 4.5 V | - | 13 nC @ 4.5 V | 10 nC @ 10 V |
| Vgs (Max) | - | ±8V | - | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1230 pF @ 10 V | 1900 pF @ 6 V | - | 1200 pF @ 10 V | 430 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 1.6W (Ta) | 1.6W (Ta) | - | 1.6W (Ta) | 1.6W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C | - | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |
| Supplier Device Package | 6-CPH | 6-CPH | - | 6-CPH | 6-CPH |
| Package / Case | SOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | - | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 |
