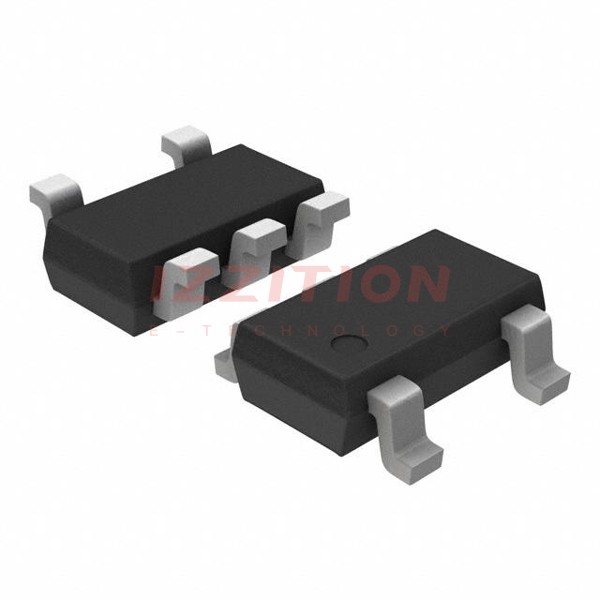

| Part Number | CPH5504-TL-E | CPH5506-TL-E | CPH5524-TL-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| Transistor Type | 2 NPN (Dual) | NPN, PNP (Emitter Coupled) | NPN, PNP (Emitter Coupled) |
| Current - Collector (Ic) (Max) | 3A | 1.5A | 3A |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 30V | 50V |
| Vce Saturation (Max) @ Ib, Ic | 210mV @ 100mA, 2A | 225mV @ 15mA, 750mA, 375mV @ 15mA, 750mA | 240mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | 100nA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V | 200 @ 100mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 1.2W | 1.2W | 1.2W |
| Frequency - Transition | 380MHz | 500MHz, 450MHz | 380MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-CPH | 5-CPH | 5-CPH |
