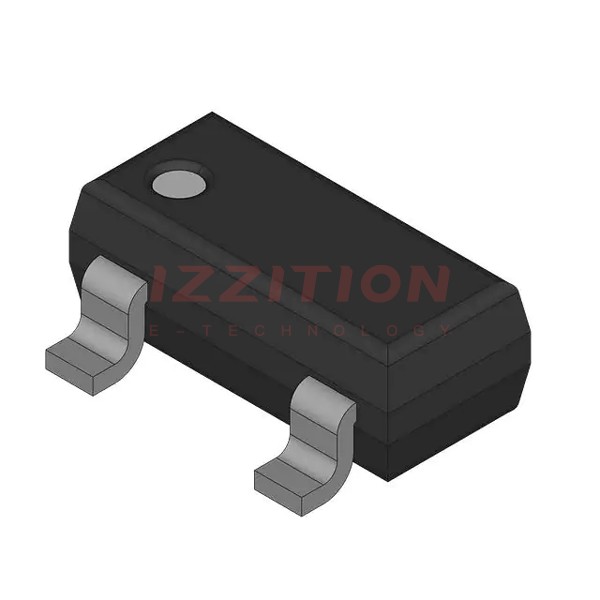

| Part Number | CPH3360-TL-W | CPH3362-TL-W | CPH3350-TL-W | CPH3360-TL-H |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 100 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.6A (Ta) | 700mA (Ta) | 3A (Ta) | 1.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | 4V, 10V | 1.8V, 4.5V | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 303mOhm @ 800mA, 10V | 1.7Ohm @ 700mA, 10V | 83mOhm @ 1.5A, 4.5V | 303mOhm @ 800mA, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | 2.6V @ 1mA | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 2.2 nC @ 10 V | 3.7 nC @ 10 V | 4.6 nC @ 4.5 V | 2.2 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±10V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 82 pF @ 10 V | 142 pF @ 20 V | 375 pF @ 10 V | 82 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 900mW (Ta) | 1W (Ta) | 1W (Ta) | 900mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 3-CPH | 3-CPH | 3-CPH | 3-CPH |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
