onsemi-CPH3215-TL-E - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	CPH3215-TL-E	CPH3245-TL-E	CPH3216-TL-E	CPH3215-TL-H	CPH3115-TL-E	CPH3205-TL-E	CPH3210-TL-E	CPH3212-TL-E	CPH3214-TL-E
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Active	Obsolete	Active	Obsolete	Active	Obsolete	Active
Transistor Type	NPN	NPN	NPN	NPN	PNP	-	-	NPN	-
Current - Collector (Ic) (Max)	1.5 A	2 A	1 A	1.5 A	1.5 A	-	-	5 A	-
Voltage - Collector Emitter Breakdown (Max)	30 V	50 V	50 V	30 V	30 V	-	-	50 V	-
Vce Saturation (Max) @ Ib, Ic	225mV @ 15mA, 750mA	260mV @ 50mA, 1A	190mV @ 10mA, 500mA	225mV @ 15mA, 750mA	375mV @ 15mA, 750mA	-	-	150mV @ 40mA, 2A	-
Current - Collector Cutoff (Max)	100nA (ICBO)	1µA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	-	-	100nA (ICBO)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	-	-	200 @ 500mA, 2V	-
Power - Max	900 mW	900 mW	900 mW	900 mW	900 mW	-	-	900 mW	-
Frequency - Transition	500MHz	420MHz	420MHz	500MHz	450MHz	-	-	330MHz	-
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	-	-	150°C (TJ)	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	-	-	Surface Mount	-
Package / Case	SC-96	SC-96	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	SC-96	-	-	TO-236-3, SC-59, SOT-23-3	-
Supplier Device Package	3-CPH	3-CPH	3-CPH	3-CP	3-CPH	-	-	3-CPH	-

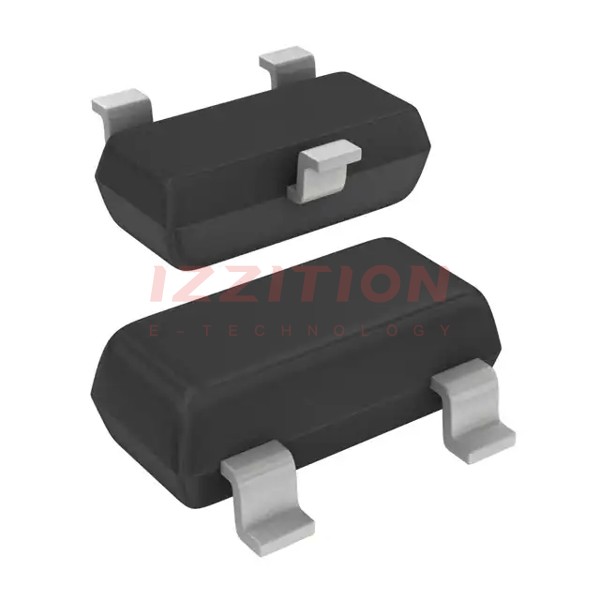

onsemi CPH3215-TL-E

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1.5 A
Voltage - Collector Emitter Breakdown (Max):	30 V
Vce Saturation (Max) @ Ib, Ic:	225mV @ 15mA, 750mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 100mA, 2V
Power - Max:	900 mW
Frequency - Transition:	500MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-96
Supplier Device Package:	3-CPH
