onsemi-CPH3145-TL-E - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	CPH3145-TL-E	CPH3245-TL-E	CPH3105-TL-E	CPH3115-TL-E	CPH3140-TL-E	CPH3144-TL-E
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Active	Active	Active
Transistor Type	PNP	NPN	PNP	PNP	PNP	PNP
Current - Collector (Ic) (Max)	2 A	2 A	3 A	1.5 A	1 A	2 A
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	50 V	30 V	100 V	30 V
Vce Saturation (Max) @ Ib, Ic	330mV @ 50mA, 1A	260mV @ 50mA, 1A	500mV @ 100mA, 2A	375mV @ 15mA, 750mA	600mV @ 40mA, 400mA	260mV @ 75mA, 1.5A
Current - Collector Cutoff (Max)	1µA (ICBO)	1µA (ICBO)	1µA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	140 @ 100mA, 5V	200 @ 100mA, 2V
Power - Max	900 mW	900 mW	900 mW	900 mW	900 mW	900 mW
Frequency - Transition	420MHz	420MHz	380MHz	450MHz	120MHz	440MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SC-96	SC-96	TO-236-3, SC-59, SOT-23-3	SC-96	SC-96	SC-96
Supplier Device Package	3-CPH	3-CPH	3-CPH	3-CPH	3-CPH	3-CPH

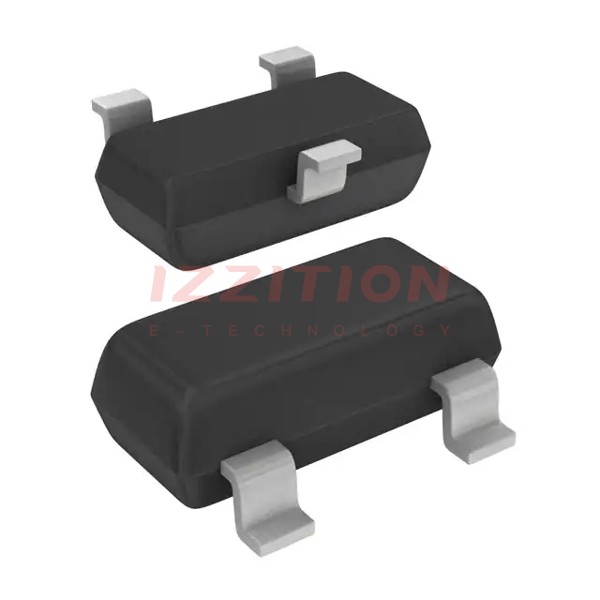

onsemi CPH3145-TL-E

Transistor Type:	PNP
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	330mV @ 50mA, 1A
Current - Collector Cutoff (Max):	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 100mA, 2V
Power - Max:	900 mW
Frequency - Transition:	420MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-96
Supplier Device Package:	3-CPH
