onsemi-CPH3115-TL-E - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	CPH3115-TL-E	CPH3145-TL-E	CPH3115-TL-H	CPH3215-TL-E	CPH3116-TL-E	CPH3105-TL-E	CPH3114-TL-E
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Obsolete	Obsolete	Obsolete	Active	Obsolete	Active
Transistor Type	PNP	PNP	PNP	NPN	PNP	PNP	PNP
Current - Collector (Ic) (Max)	1.5 A	2 A	1.5 A	1.5 A	1 A	3 A	1.5 A
Voltage - Collector Emitter Breakdown (Max)	30 V	50 V	30 V	30 V	50 V	50 V	15 V
Vce Saturation (Max) @ Ib, Ic	375mV @ 15mA, 750mA	330mV @ 50mA, 1A	375mV @ 15mA, 750mA	225mV @ 15mA, 750mA	430mV @ 10mA, 500mA	500mV @ 100mA, 2A	180mV @ 15mA, 750mA
Current - Collector Cutoff (Max)	100nA (ICBO)	1µA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	1µA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V	200 @ 100mA, 2V
Power - Max	900 mW	900 mW	900 mW	900 mW	900 mW	900 mW	900 mW
Frequency - Transition	450MHz	420MHz	450MHz	500MHz	420MHz	380MHz	350MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SC-96	SC-96	SC-96	SC-96	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	SC-96
Supplier Device Package	3-CPH	3-CPH	3-CPH	3-CPH	3-CPH	3-CPH	3-CPH

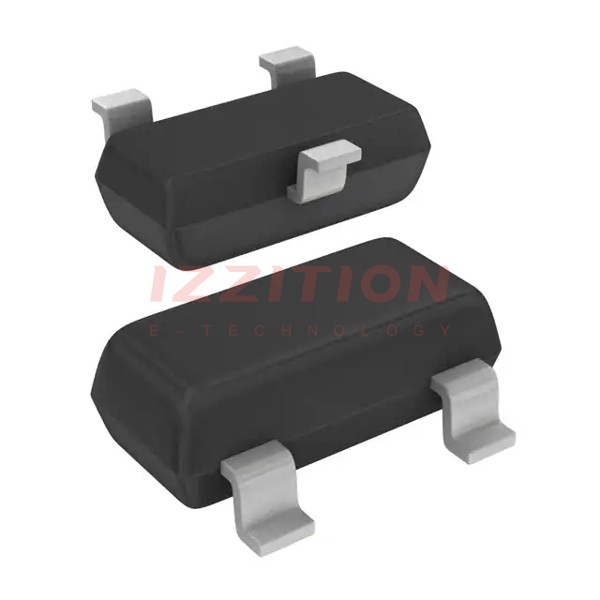

onsemi CPH3115-TL-E

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1.5 A
Voltage - Collector Emitter Breakdown (Max):	30 V
Vce Saturation (Max) @ Ib, Ic:	375mV @ 15mA, 750mA
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 100mA, 2V
Power - Max:	900 mW
Frequency - Transition:	450MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-96
Supplier Device Package:	3-CPH
