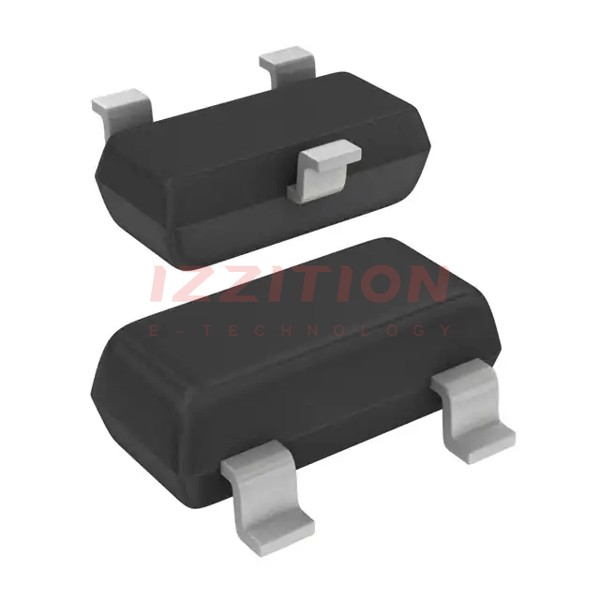

| Part Number | CPH3106-TL-E | CPH3206-TL-E | CPH3109-TL-E | CPH3116-TL-E | CPH3107-TL-E | CPH3105-TL-E |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Not For New Designs | Active | Obsolete | Active | Active | Obsolete |
| Transistor Type | PNP | - | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 3 A | - | 3 A | 1 A | 6 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 12 V | - | 30 V | 50 V | 15 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 165mV @ 30mA, 1.5A | - | 230mV @ 30mA, 1.5A | 430mV @ 10mA, 500mA | 150mV @ 60mA, 3A | 500mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | - | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V | - | 200 @ 500mA, 2V | 200 @ 100mA, 2V | 200 @ 500mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 900 mW | - | 900 mW | 900 mW | 900 mW | 900 mW |
| Frequency - Transition | 280MHz | - | 380MHz | 420MHz | 140MHz | 380MHz |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-96 | - | SC-96 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | 3-CPH | - | 3-CPH | 3-CPH | 3-CPH | 3-CPH |
