Please send RFQ , we will respond immediately.
| Part Number | CM6110 | CM6116 | CM6100 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Steering (Rail to Rail) |
| Unidirectional Channels | 1 | 1 | 2 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | - | - | 3V |
| Voltage - Breakdown (Min) | 10V | 16V | 6V |
| Voltage - Clamping (Max) @ Ipp | 13V | 20V | 9.8V (Typ) |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | 1A (8/20µs) | 1A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | Yes |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

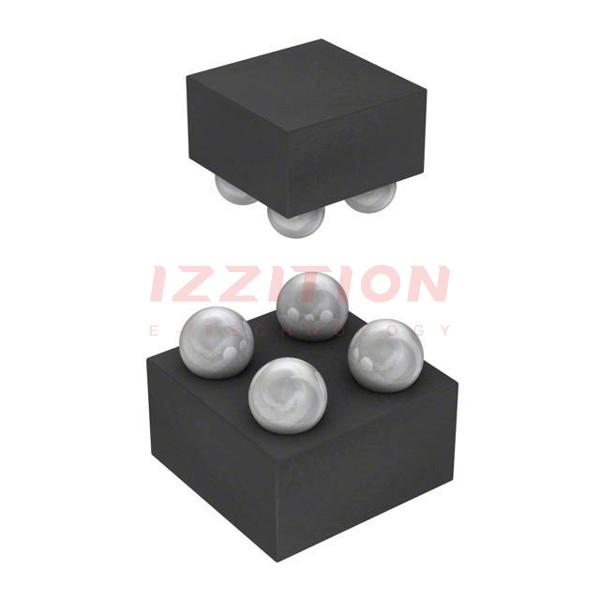

| Package / Case | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP | 4-UFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.8x0.8) | 4-WLCSP (0.8x0.8) | 4-WLCSP (0.8x0.8) |
