CM1693-08DE
  • Share:

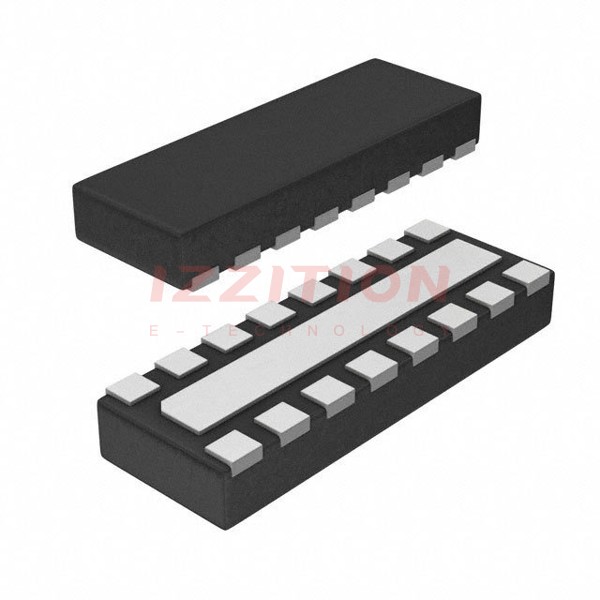

onsemi CM1693-08DE

Manufacturer No:
CM1693-08DE
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
CM1693-08DE Datasheet
ECAD Model:
-
Description:
FILTER LC(PI) 26NH/22PF ESD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Low Pass
Filter Order:3rd
Technology:LC (Pi)
Number of Channels:8
Center / Cutoff Frequency:300MHz (Cutoff)
Attenuation Value:-30dB @ 800MHz ~ 6GHz
Resistance - Channel (Ohms):-
Current:30 mA
Values:L = 26nH, C = 22pF (Total)
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:16-UFDFN Exposed Pad
Size / Dimension:0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:0.022" (0.55mm)
0 Remaining View Similar

In Stock

-
44

Please send RFQ , we will respond immediately.
