onsemi-CM1624-08DE - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	3rd
Technology:	RLC
Number of Channels:	6
Center / Cutoff Frequency:	300MHz (Cutoff)
Attenuation Value:	-
Resistance - Channel (Ohms):	40
Current:	-
Values:	R = 40Ohms, C = 12pF, L = 20nH
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	16-UFDFN Exposed Pad
Size / Dimension:	0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:	0.022" (0.55mm)

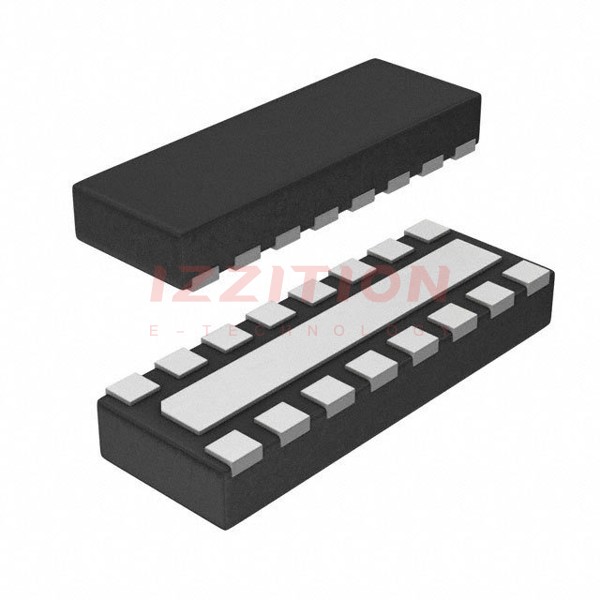

onsemi CM1624-08DE
