onsemi-CM1461-06DE - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	3rd
Technology:	LC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	-
Attenuation Value:	30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms):	-
Current:	30 mA
Values:	L = 20nH, C = 10pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	12-WFDFN Exposed Pad
Size / Dimension:	0.118" L x 0.053" W (3.00mm x 1.35mm)
Height:	0.031" (0.79mm)

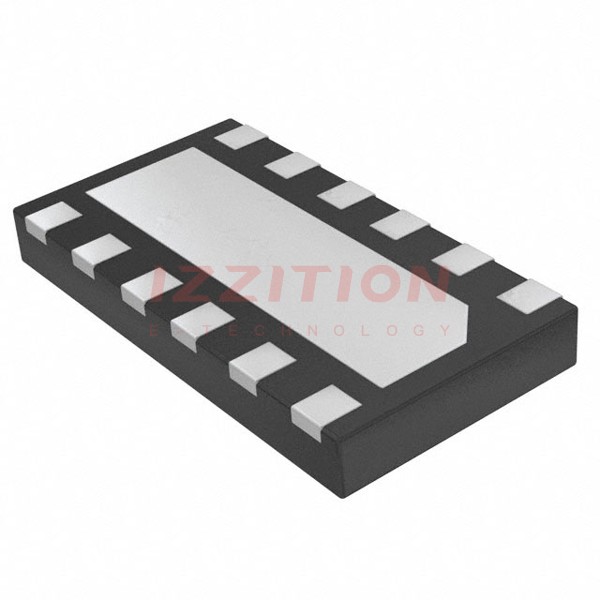

onsemi CM1461-06DE
