onsemi-CM1425-03CP - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	4
Center / Cutoff Frequency:	86MHz (Cutoff)
Attenuation Value:	30dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 20pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	9-UFBGA, WLCSP
Size / Dimension:	0.097" L x 0.038" W (2.47mm x 0.97mm)
Height:	0.026" (0.65mm)

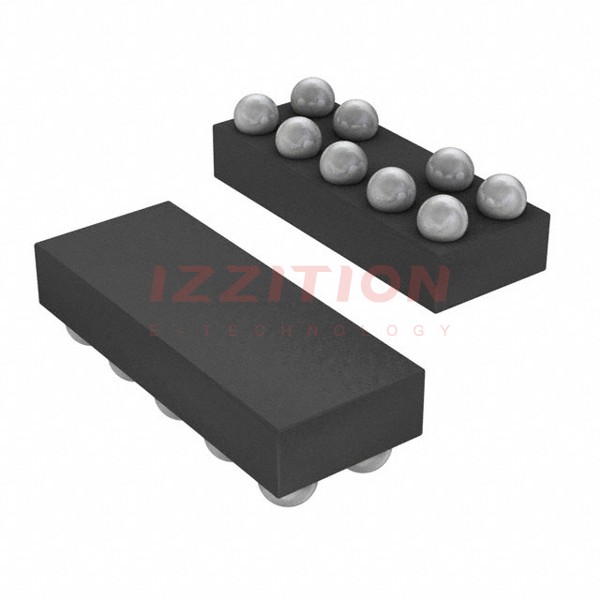

onsemi CM1425-03CP
