onsemi-CM1423-03CP - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	6
Center / Cutoff Frequency:	145MHz (Cutoff)
Attenuation Value:	25dB @ 1GHz
Resistance - Channel (Ohms):	100
Current:	-
Values:	R = 100Ohms, C = 12pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount
Package / Case:	20-WFBGA, WLCSP
Size / Dimension:	0.157" L x 0.057" W (4.00mm x 1.46mm)
Height:	0.020" (0.51mm)

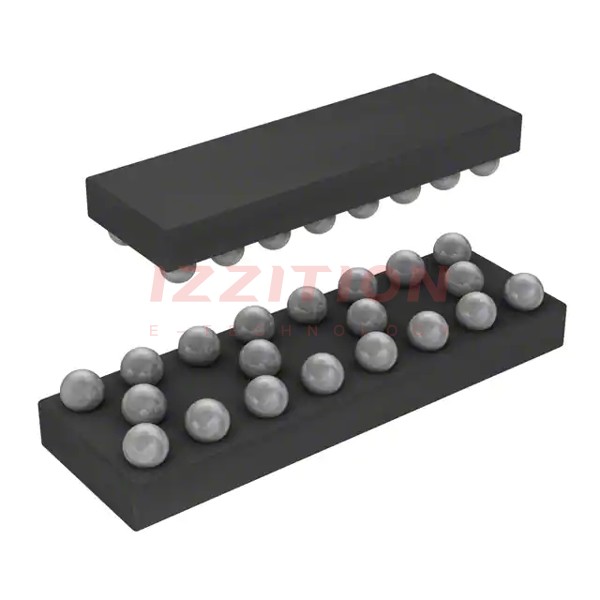

onsemi CM1423-03CP
