CM1419-02CP
  • Share:

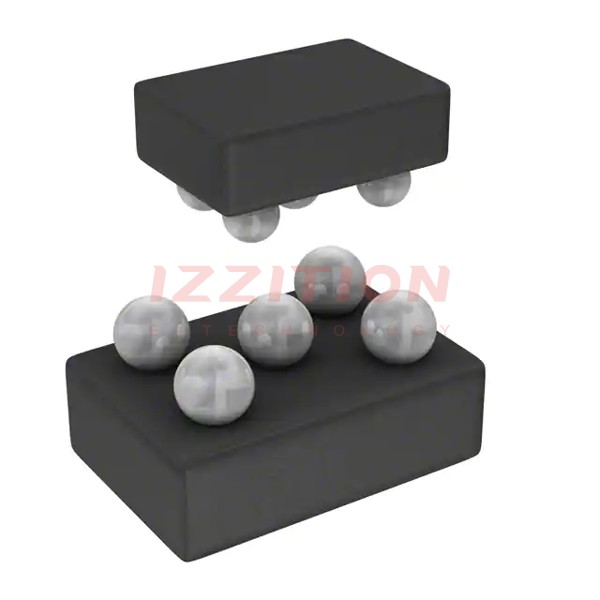

onsemi CM1419-02CP

Manufacturer No:
CM1419-02CP
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
CM1419-02CP Datasheet
ECAD Model:
-
Description:
FILTER LC(PI) 3NH/117PF ESD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Low Pass
Filter Order:3rd
Technology:LC (Pi)
Number of Channels:2
Center / Cutoff Frequency:22MHz (Cutoff)
Attenuation Value:30dB @ 1GHz
Resistance - Channel (Ohms):0.28
Current:500 mA
Values:L = 3nH, C = 117pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:5-WFBGA, WLCSP
Size / Dimension:0.063" L x 0.047" W (1.60mm x 1.20mm)
Height:0.028" (0.70mm)
0 Remaining View Similar

In Stock

$0.20
2,523

Please send RFQ , we will respond immediately.
