onsemi-CM1402-03CP - EMI/RFI Filters (LC, RC Networks) Product Specifications and Latest Quotes

Type:	Low Pass
Filter Order:	2nd
Technology:	RC (Pi)
Number of Channels:	3
Center / Cutoff Frequency:	77MHz, 85MHz (Cutoff)
Attenuation Value:	30dB @ 1GHz
Resistance - Channel (Ohms):	47, 100
Current:	-
Values:	R = 47Ohms, 100Ohms, C = 20pF
ESD Protection:	Yes
Operating Temperature:	-40°C ~ 85°C
Applications:	Data Lines for Mobile Devices
Voltage - Rated:	-
Mounting Type:	Surface Mount

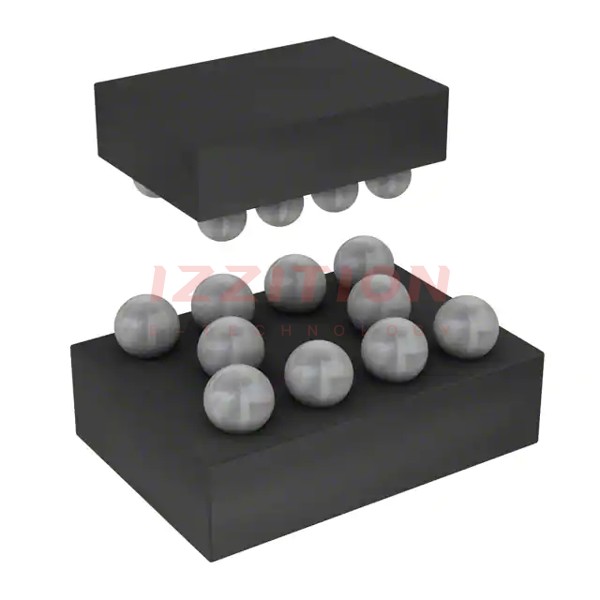

Package / Case:	10-WFBGA, WLCSP
Size / Dimension:	0.077" L x 0.052" W (1.96mm x 1.33mm)
Height:	0.028" (0.72mm)

onsemi CM1402-03CP
