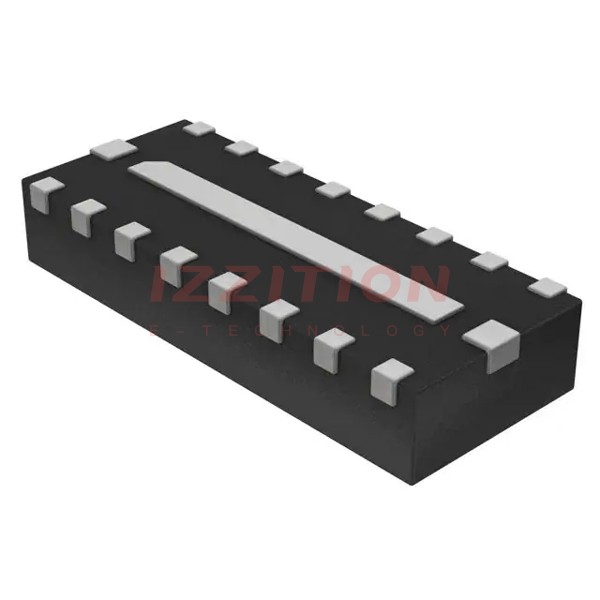

| Part Number | CM1238-08DE | CM1248-08DE | CM1233-08DE | CM1234-08DE | CM1235-08DE |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Steering (Rail to Rail) | Zener | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 8 | 8 | 4 | 8 | 8 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | 6.1V (Min) | 5.5V (Max) | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V | - | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) | 6.8V (Typ) | 10V (Typ) | 9V (Typ) | 9.2V (Typ) |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | - | 1A (8/20µs) | 1A (8/20µs) | 1A (8/20µs) |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | Yes | No | Yes | Yes | Yes |
| Applications | General Purpose | General Purpose | General Purpose | HDMI | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad | 8-UFDFN Exposed Pad | 16-WDFN Exposed Pad | 16-WDFN Exposed Pad | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-TDFN EEP (4x1.6) | 8-UDFN (1.7x1.35) | 16-WDFN (6x4) | 16-WDFN (6x4) | 16-WDFN (4x1.7) |
