Please send RFQ , we will respond immediately.

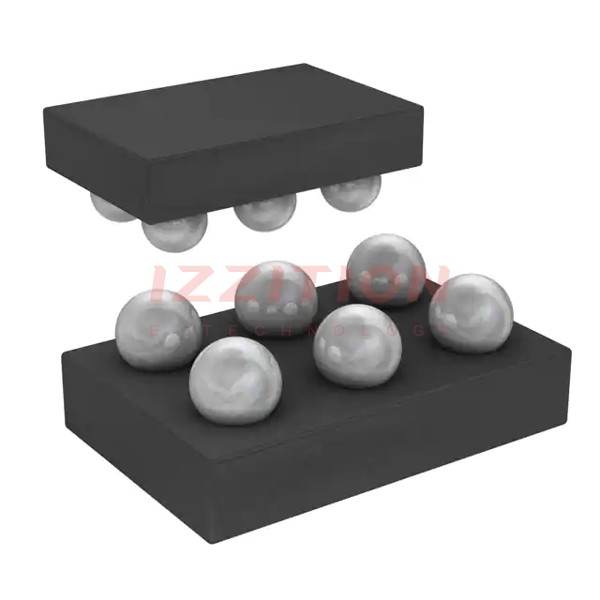

| Part Number | CM1230-04CP | CM1230-08CP | CM1220-04CP | CM1230-02CP |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Zener | Steering (Rail to Rail) |
| Unidirectional Channels | 4 | 8 | 4 | 2 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 3.3V | 3.3V | - | 3.3V |
| Voltage - Breakdown (Min) | 6V | 6V | - | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.8V (Typ) | 9.8V (Typ) | 9V | 9.8V (Typ) |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | 1A (8/20µs) | - | 1A (8/20µs) |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | Yes | Yes | No | Yes |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WFBGA, WLCSP | 10-WFBGA, WLCSP | 5-WFBGA, WLCSP | 4-WFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.46x0.96) | 10-WLCSP (2.46x0.96) | 5-WLCSP (0.96x1.33) | 4-WLCSP (0.96x0.96) |
