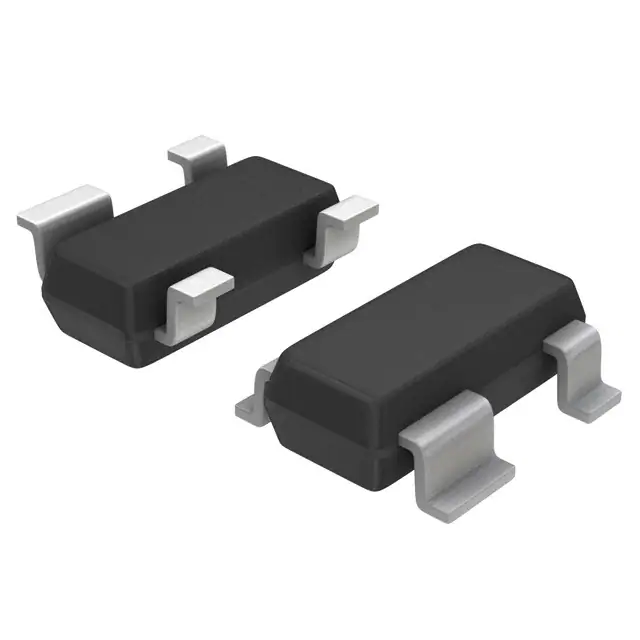

| Part Number | CM1213A-02SR | CM1293A-02SR | CM1213A-02SO |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 2 | 2 | 2 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 3.3V | 3.3V | 3.3V |
| Voltage - Breakdown (Min) | 6V | - | 6V |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) | 9.9V (Typ) | 10V (Typ) |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | 1A (8/20µs) | 1A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | Yes | Yes | Yes |
| Applications | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-253-4, TO-253AA | TO-253-4, TO-253AA | SC-74, SOT-457 |
| Supplier Device Package | SOT-143 | SOT-143 | SC-74 |
