Please send RFQ , we will respond immediately.
| Part Number | CAT809SSDI-T3 | CAT809TSDI-T3 | CAT809ZSDI-T3 | CAT803SSDI-T3 | CAT809LSDI-T3 | CAT809SSDI-GT3 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 2.93V | 3.08V | 2.32V | 2.93V | 4.63V | 2.93V |
| Output | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Push-Pull, Totem Pole | Open Drain or Open Collector | Push-Pull, Totem Pole | Push-Pull, Totem Pole |
| Reset | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low |
| Reset Timeout | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum | 140ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

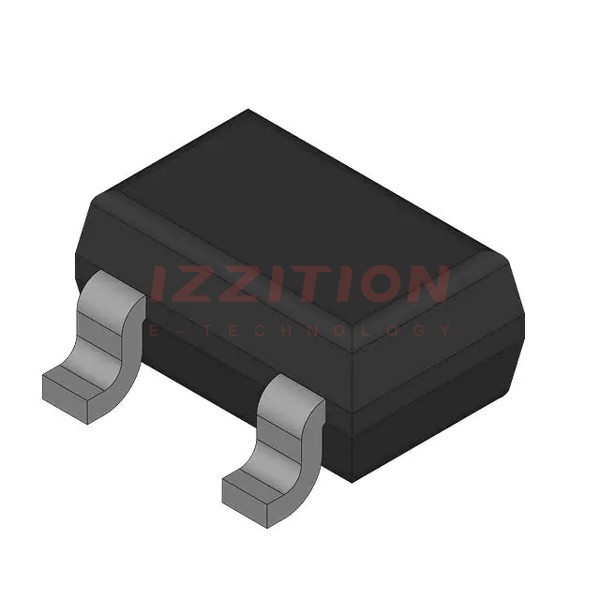

| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 | SC-70-3 |
