onsemi-CAT6243DCADJ-RKG - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	0.8V
Voltage - Output (Max):	5V
Voltage Dropout (Max):	0.275V @ 1A
Current - Output:	1A
Current - Quiescent (Iq):	100 µA
Current - Supply (Max):	250 µA
PSRR:	54dB ~ 42dB (1kHz ~ 20kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount

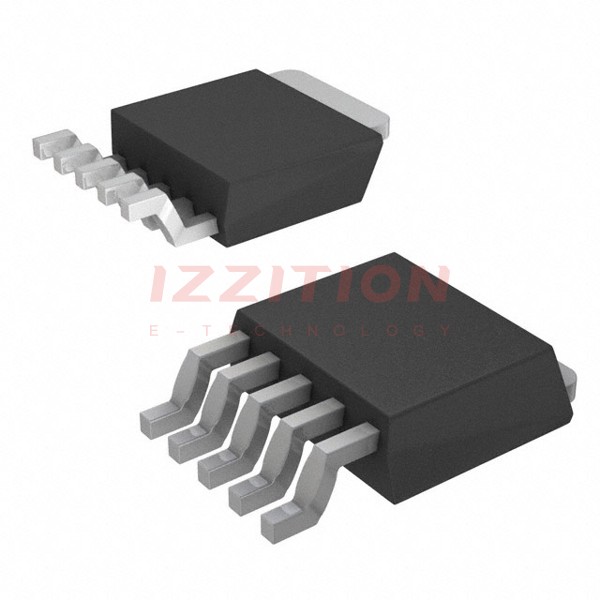

Package / Case:	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package:	DPAK-5 (TO-252)

onsemi CAT6243DCADJ-RKG
