onsemi-CAT6220VP5I-GT3 - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	6.5V
Voltage - Output (Min/Fixed):	1.24V
Voltage - Output (Max):	6.5V
Voltage Dropout (Max):	0.5V @ 300mA
Current - Output:	300mA
Current - Quiescent (Iq):	15 µA
Current - Supply (Max):	100 µA
PSRR:	62dB ~ 48dB (100Hz ~ 1kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount

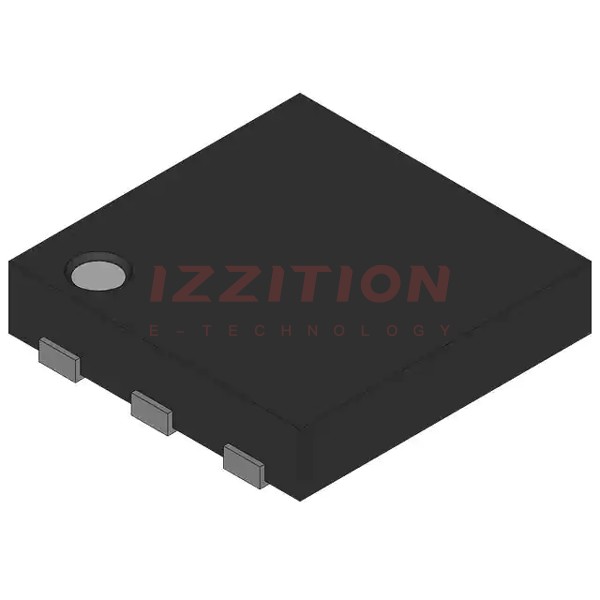

Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-WDFN (2x2)

onsemi CAT6220VP5I-GT3
