onsemi-CAT6201VP2-GT3 - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	13.5V
Voltage - Output (Min/Fixed):	1.25V
Voltage - Output (Max):	12.5V
Voltage Dropout (Max):	0.35V @ 300mA
Current - Output:	300mA
Current - Quiescent (Iq):	150 µA
Current - Supply (Max):	300 µA
PSRR:	62dB ~ 52dB (1kHz ~ 20kHz)
Control Features:	Current Limit, Enable, Soft Start
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-WFDFN Exposed Pad
Supplier Device Package:	8-TDFN (2x3)

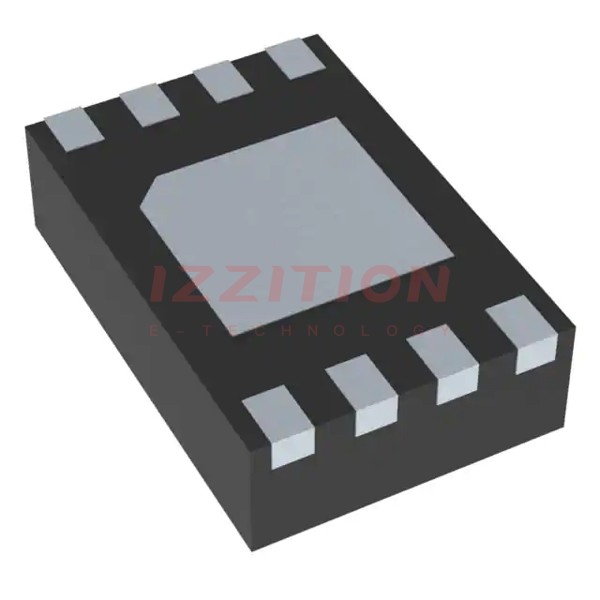

onsemi CAT6201VP2-GT3
