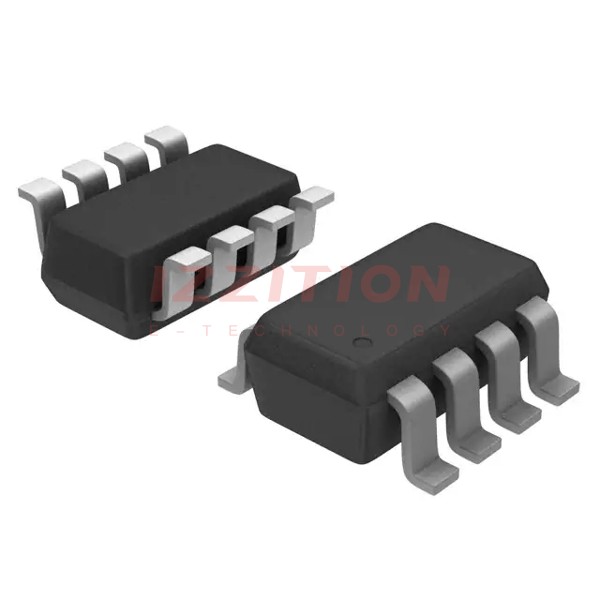

| Part Number | CAT5128TBI-50GT3 | CAT5118TBI-50GT3 | CAT5120TBI-50GT3 | CAT5121TBI-50GT3 | CAT5122TBI-50GT3 | CAT5124TBI-50GT3 | CAT5125TBI-50GT3 | CAT5128TBI-00GT3 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Taper | Linear | Linear | Linear | Linear | Linear | - | Linear | Linear |
| Configuration | Potentiometer | Rheostat | Rheostat | Rheostat | Rheostat | Rheostat | Rheostat | Potentiometer |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Taps | 32 | 32 | 16 | 16 | 16 | 32 | 32 | 32 |
| Resistance (Ohms) | 50k | 50k | 50k | 50k | 50k | 50k | 50k | 100k |
| Interface | Up/Down (UP, DN) | Up/Down (U/D, CS) | Up/Down (U/D, CS) | Up/Down (U/D, CS) | Up/Down (U/D, CS) | - | Up/Down (U/D, CS) | Up/Down (UP, DN) |
| Memory Type | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile | Volatile |
| Voltage - Supply | 2.5V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.5V ~ 5.5V |
| Features | - | - | - | - | - | - | - | - |
| Tolerance | ±20% | ±20% | ±25% | ±25% | ±25% | - | ±20% | ±20% |
| Temperature Coefficient (Typ) | 50ppm/°C | 200ppm/°C | 200ppm/°C | 200ppm/°C | 200ppm/°C | 30ppm/°C | 30ppm/°C | 50ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-8 | SOT-23-5 | SOT-23-6 | SOT-23-6 | SOT-23-5 | SOT-23-5 | SOT-23-6 | SOT-23-8 |
| Package / Case | SOT-23-8 | SC-74A, SOT-753 | SOT-23-6 | SOT-23-6 | SC-74A, SOT-753 | SC-74A, SOT-753 | SOT-23-6 | SOT-23-8 |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 150 | 200 | 200 | 200 | 200 | - | 80 | 150 |
