Please send RFQ , we will respond immediately.

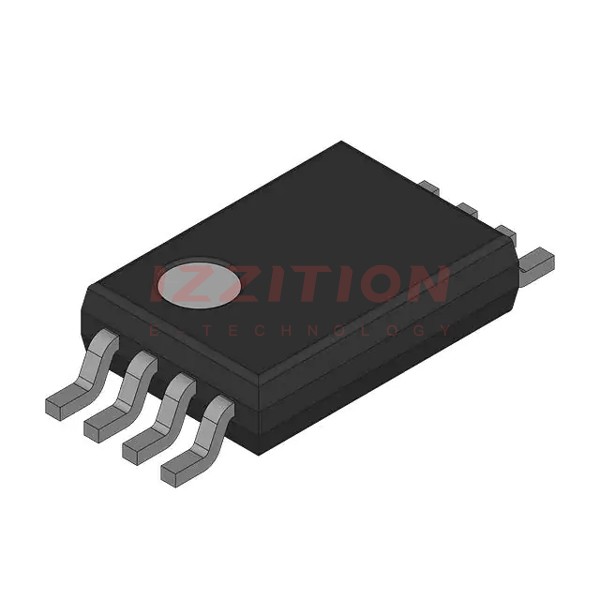

| Part Number | CAT5112YI-10-GT3 | CAT5113YI-10-GT3 | CAT5114YI-10-GT3 | CAT5112YI-50-GT3 | CAT5112ZI-10-GT3 | CAT5112YI-10-T3 | CAT5111YI-10-GT3 | CAT5112VI-10-GT3 | CAT5112YI-00-GT3 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Taper | - | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear |
| Configuration | - | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Taps | - | 100 | 32 | 32 | 32 | 32 | 100 | 32 | 32 |
| Resistance (Ohms) | - | 10k | 10k | 50k | 10k | 10k | 10k | 10k | 100k |
| Interface | - | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) |
| Memory Type | - | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | - | 2.5V ~ 6V | 2.5V ~ 6V | 2.5V ~ 6V | 2.5V ~ 6V | 2.5V ~ 6V | 2.5V ~ 6V | 2.5V ~ 6V | 2.5V ~ 6V |
| Features | - | - | - | - | - | - | - | - | - |
| Tolerance | - | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | - | 300ppm/°C | 300ppm/°C | 300ppm/°C | 300ppm/°C | 300ppm/°C | 300ppm/°C | 300ppm/°C | 300ppm/°C |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-MSOP | 8-TSSOP | 8-TSSOP | 8-SOIC | 8-TSSOP |
| Package / Case | - | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | - | 1000 (Max) | 150 | - | - | - | - | - | - |
