| Part Number | CAT3644HV3-T2 | CAT3643HV3-T2 | CAT3644HV3-GT2 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete |
| Type | - | - | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) | - | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes | - | Yes |
| Number of Outputs | 4 | - | 4 |
| Voltage - Supply (Min) | 2.5V | - | 2.5V |
| Voltage - Supply (Max) | 5.5V | - | 5.5V |
| Voltage - Output | 7V | - | 7V |
| Current - Output / Channel | 25mA | - | 25mA |
| Frequency | 800kHz ~ 1.6MHz | - | 1MHz ~ 1.3MHz |
| Dimming | - | - | Multi-Step |
| Applications | Backlight | - | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount |

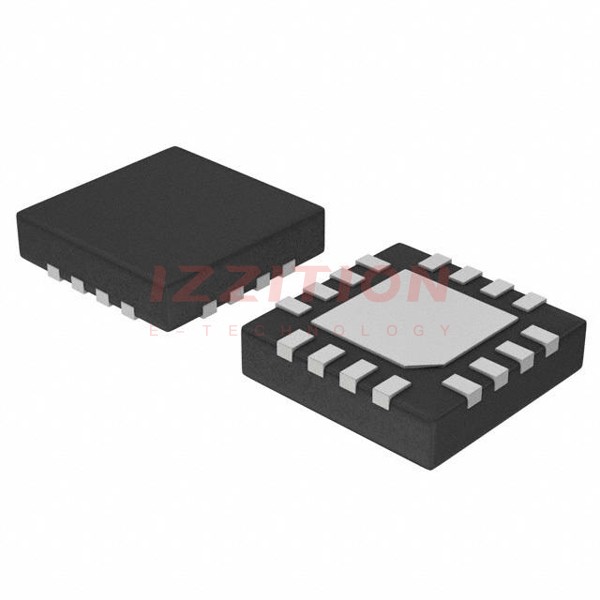

| Package / Case | 16-WFQFN Exposed Pad | - | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) | - | 16-TQFN (3x3) |
